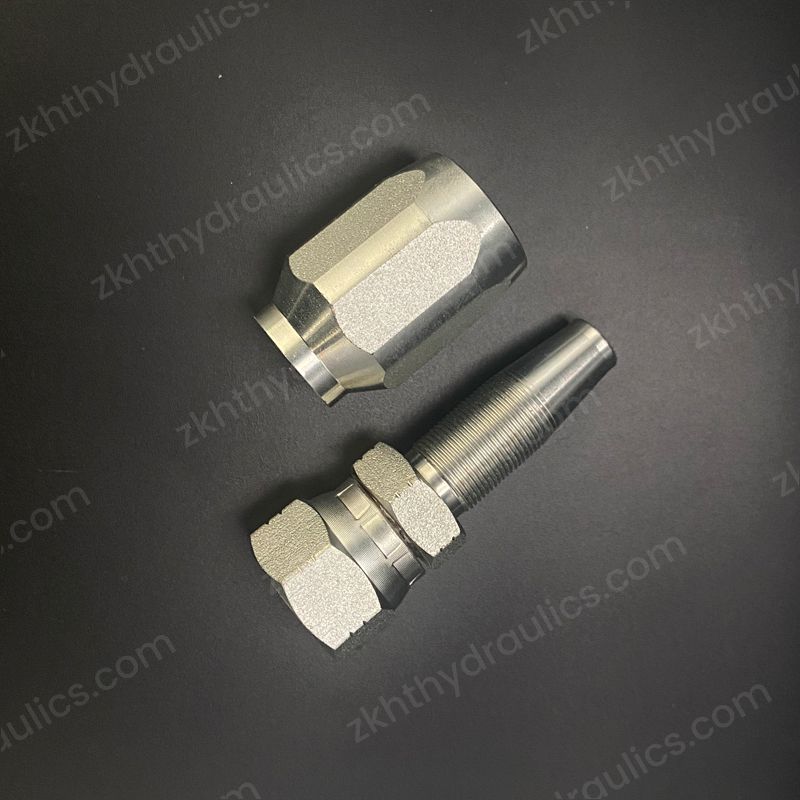

HT Hydraulics Since 1987 Hydraulic Hose Fitting -Reusable Fittings
JIC FEMALE 74℃ONE SEAL ISO8434-2--SAE J514
FERRULE FOR SAE 100 R5 HOSE
PRODUCT INTRODUCTION

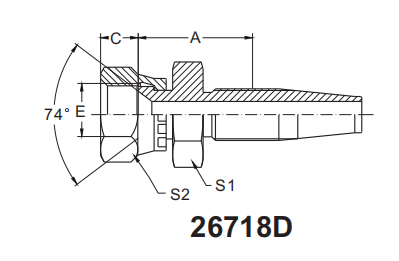

H26718D | HT Hydraulics Since 1987 Hydraulic Hose Fitting -Reusable Fittings | |||||||

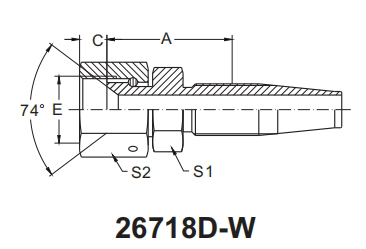

H26718D-W | JIC FEMALE 74℃ONE SEAL ISO8434-2--SAE J514 | |||||||
Part No. | Thread | HOSE BORE | DIMENSIONS | |||||
DN | DASH | A | C | S1 | S2 | |||
H26718D-04-04 | 7/16X20 | 5 | 04 | 22 | 8.7 | 14 | 14 | |
H26718D-05-05 | 1/2X20 | 6.3 | 05 | 25.4 | 9.5 | 14 | 16 | |
H26718D-06-06 | 9/16X18 | 8 | 06 | 24.5 | 9.5 | 17 | 19 | |
H26718D-08-08 | 3/4X16 | 11 | 08 | 31.5 | 10.7 | 22 | 22 | |
H26718D-10-10 | 7/8X14 | 12.5 | 10 | 35 | 12.7 | 27 | 27 | |
H26718D-12-12 | 1.1/16X12 | 26 | 12 | 37 | 14.3 | 32 | 32 | |
H26718D-16-16 | 1.5/16X12 | 22 | 16 | 35.5 | 15.1 | 38 | 41 | |
H26718D-20-20W | 1.5/8X12 | 29 | 20 | 41.5 | 16.5 | 41 | 50 | |
H26718D-24-24W | 1.7/8X12 | 35 | 24 | 43 | 19.5 | 46 | 55 | |
H26718D-32-32W | 2.1/2X12 | 46 | 32 | 45.5 | 23.5 | 65 | 75 |
H00518 | HT Hydraulics Since 1987 Hydraulic Hose Fitting -Reusable Ferrules | ||||

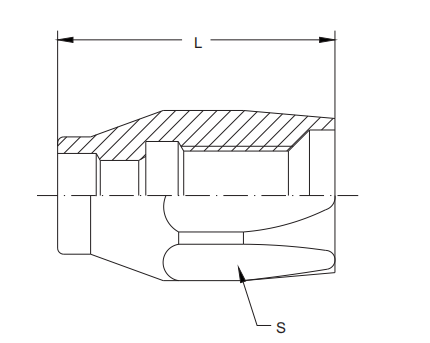

FERRULE FOR SAE 100 R5 HOSE | |||||
HOSE BORE | DIMENSIONS | ||||
Part no. | DN | DASH | L | S | |
H00518-04 | 5 | 04 | 28 | 17 | |
H00518-05 | 6.3 | 05 | 30.5 | 19 | |
H00518-06 | 8 | 06 | 33 | 22 | |
H00518-08 | 11 | 08 | 42 | 24 | |
H00518-10 | 12.5 | 10 | 45.5 | 30 | |
H00518-12 | 16 | 12 | 53.5 | 32 | |
H00518-16 | 22 | 16 | 42 | 36 | |
H00518-20 | 29 | 20 | 44.5 | 46 | |
H00518-24 | 35 | 24 | 47 | 50 | |
H00518-32 | 46 | 32 | 57 | 65 |
